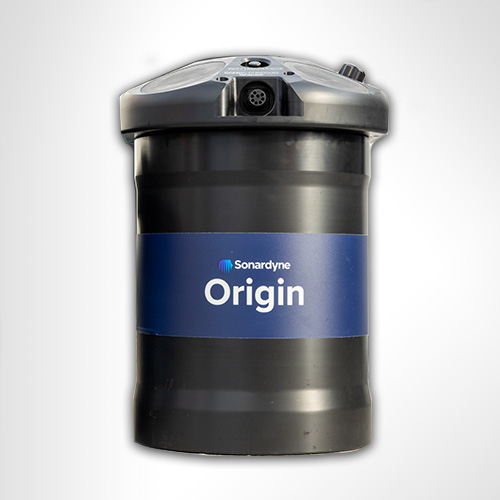

Origin 600 ADCP
Overview
Rediscover your ADCP!
Origin offers resounding resolution on data detail.
Giving you a choice of either industry standard or up to ten times greater resolution with our exclusive proprietary data formats, Origin 600 delivers you the finest detail ADCP data in near real time.
Reduce your survey costs, risks and time! With a 50-metre current profiling range, on-board Edge data processing and an integrated acoustic modem, Origin 600 provides you with in-situ, high resolution measurements and on-demand data retrieval.
Make time-critical decisions with near real-time data delivery
Analyse the structure of your velocity and backscatter intensity data in far finer detail than previously possible with our proprietary formats delivering up to ten times greater spatial resolution. Origin 600 delivers conventional PD0 data as standard, whilst logging the higher resolution data to further enhance your results. All data is recorded to the onboard storage unit with 1 TB capacity.
Reduce your risks and device retrieval costs with power-efficient electronics and a rechargeable internal battery which allows deployments of up to three months on a single charge. A dual battery option allows you to operate longer or more energy demanding deployments. External power can be supplied by PoE, allowing you to program and download data without a separate power supply.

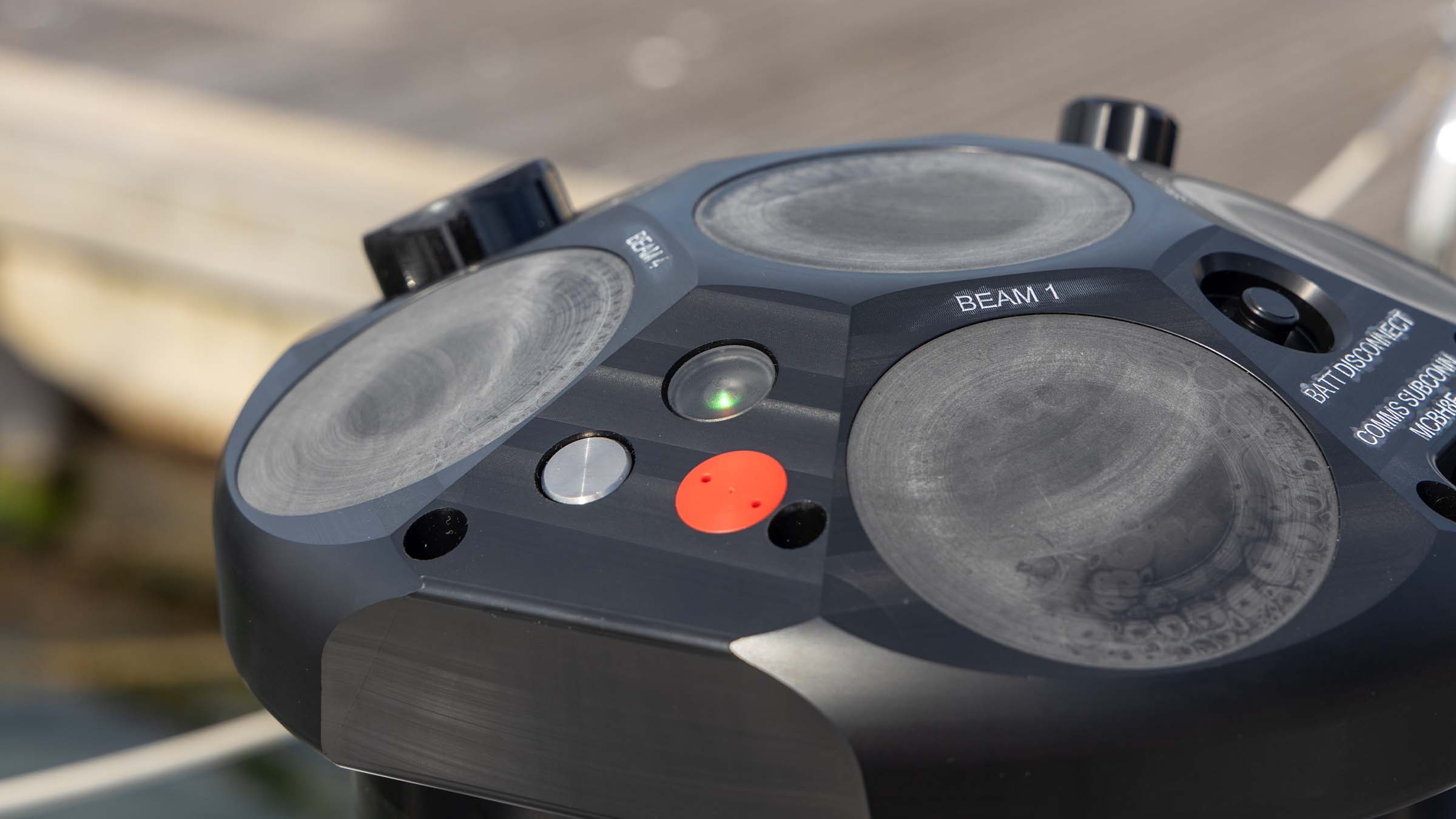

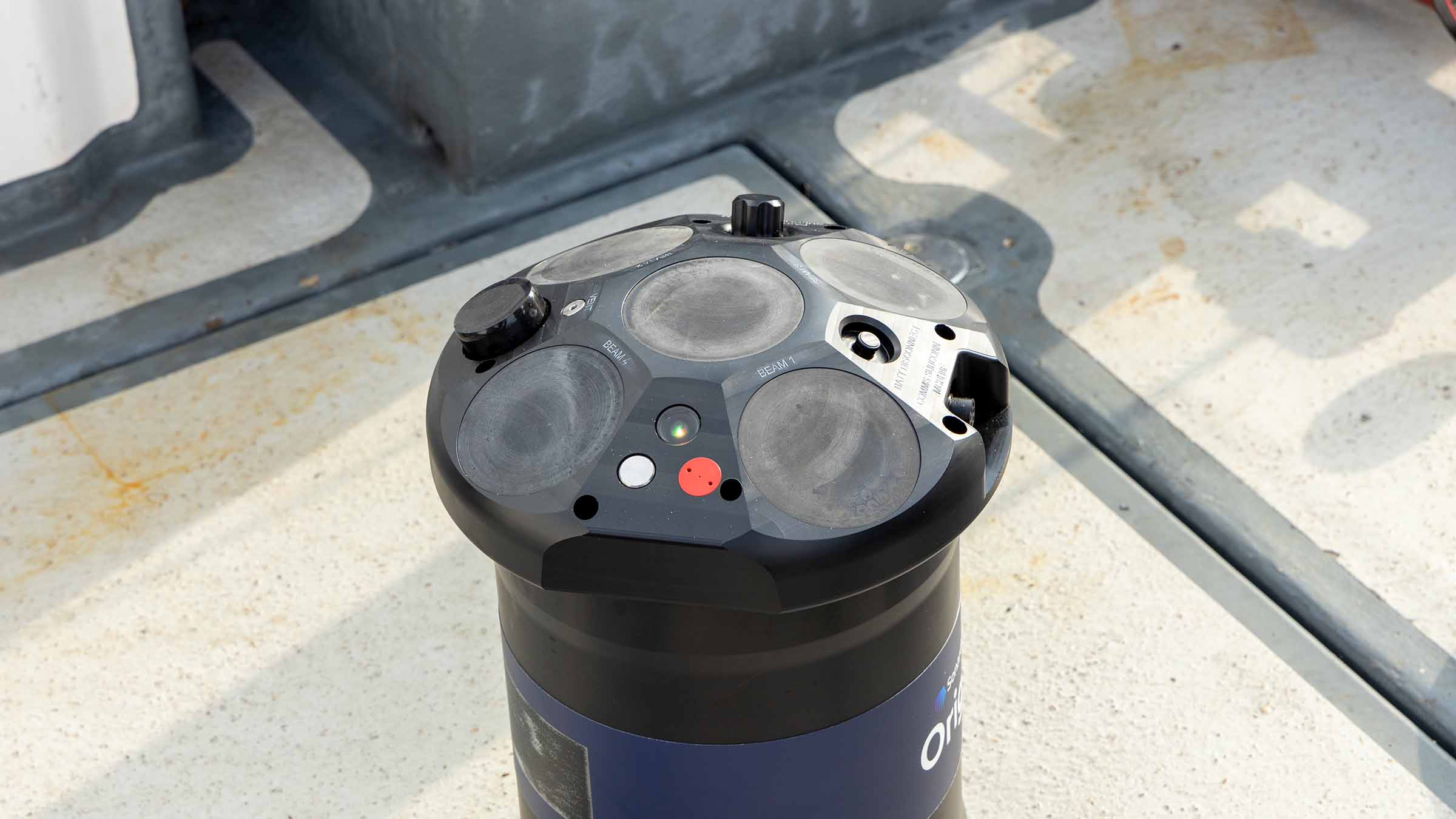

Monitor waves, mean currents and turbulence using Origin 600’s five-beam configuration and sampling frequency of up to 4 Hz on all beams. Your Origin’s built-in acoustic modem enables you to remotely access the unit while it’s deployed using an accompanying topside modem (sold separately) and the Origin Topside PC software. This allows you to check battery and storage, inspect and upload data, reconfigure schedules and run quality control, all whilst your ADCP is on the seabed.
Add external sensors to your ADCP mounting frame, and fuse with your Origin data via the Edge processing software, to really get the most out of every single deployment. You can upload sensor apps via Origin Portal or Topside and the resulting data will be exported over the acoustic modem.
What is Edge?
Discover the key to your customised ADCP data…
A suite of intuitive software tools and the Sonardyne Edge computing environment allows you to get the most out of your Origin 600. The Origin Portal web UI lets you configure your ADCP in operational conditions, including modification of the sampling schedule. Reduce your operational risks by setting your schedules before deployment using the Origin Scheduler PC application. Two schedules can be run together, allowing dual monitoring tasks to be performed with a single device. File data can be inspected using the Origin Viewer software package.

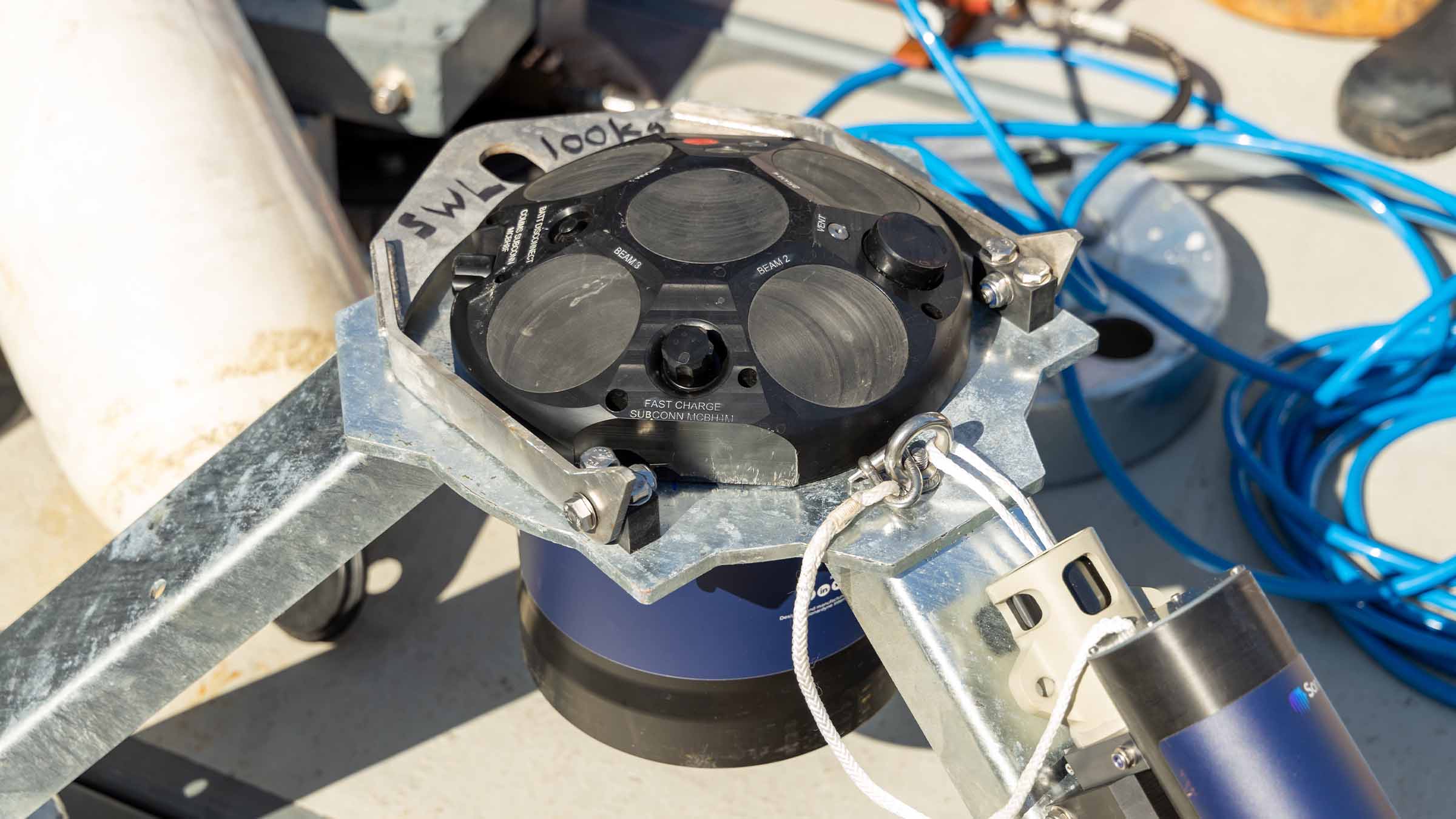

Origin 600 is compatible with your standard mounting infrastructure, reducing your risk and cost for upgrading to this device. For a complete solution, we can provide a dedicated, rugged stand with space for dual redundant releases.
Why choose Origin 600 ADCP?
Origin 600 – Mid-range ADCP
Origin 600 – Mid-range ADCP
Five reasons to LOVE Origin 600 ADCP
Five reasons to LOVE Origin 600 ADCP
Origin 600 for ocean science
Origin 600 for ocean science
Performance
• 625 kHz operating frequency
• 1.2 to 60 m profiling range
• 150 m operational depth rating
• Onboard data storage and processing, 1TB onboard storage as standard
Design

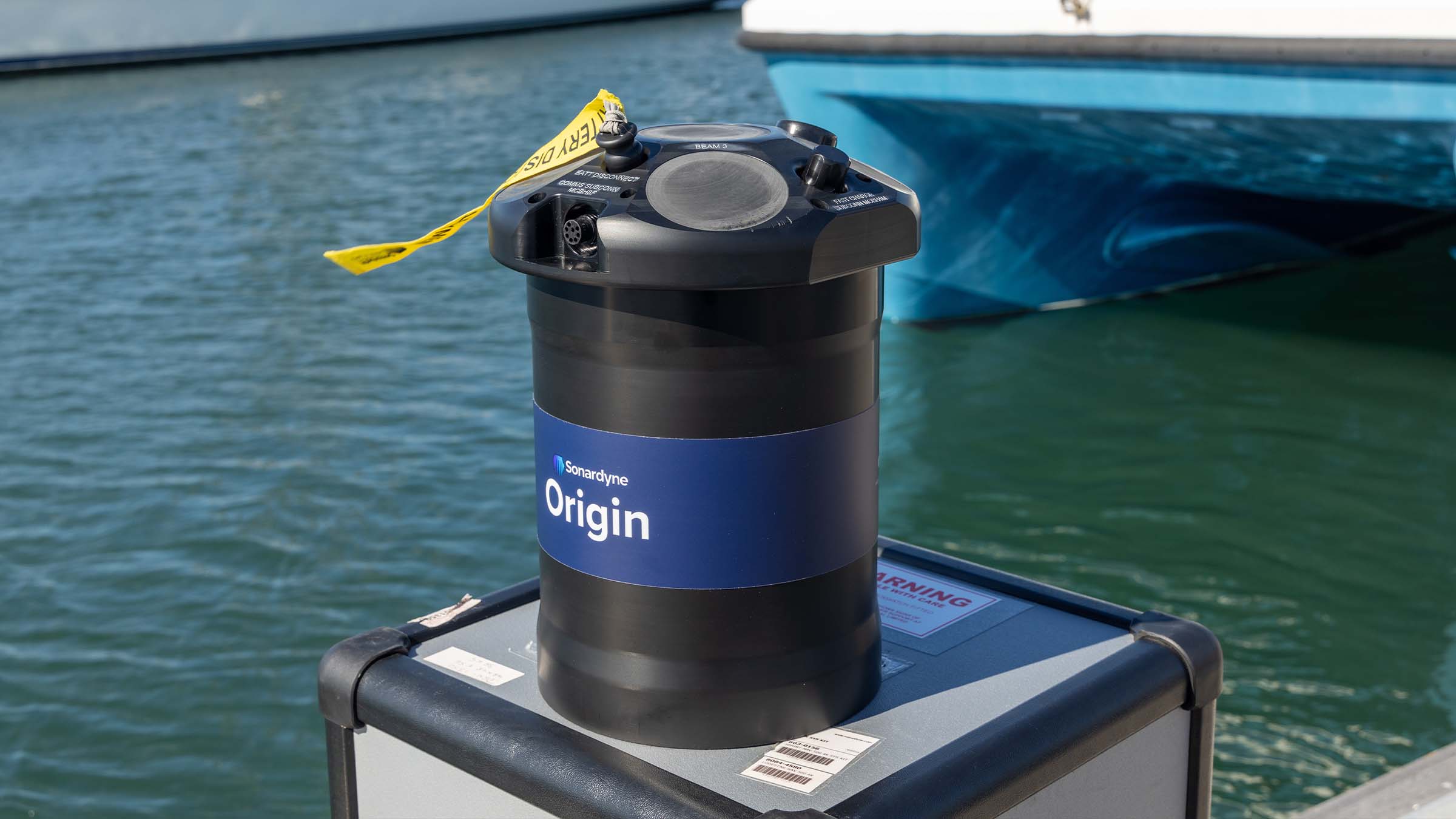

• All-in-one design

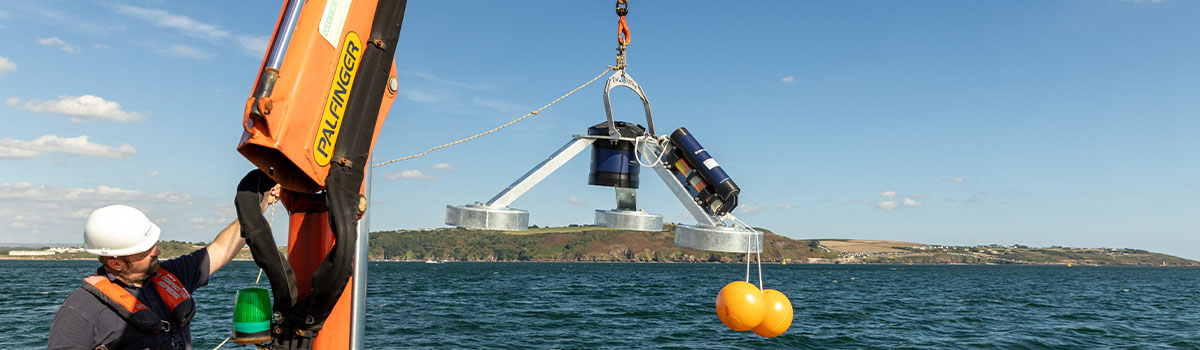

• Compact and easy to install from small vessels
• Dual battery and external power options
• Internal rechargeable battery allows for deployments of 3 months
Expanded functionality

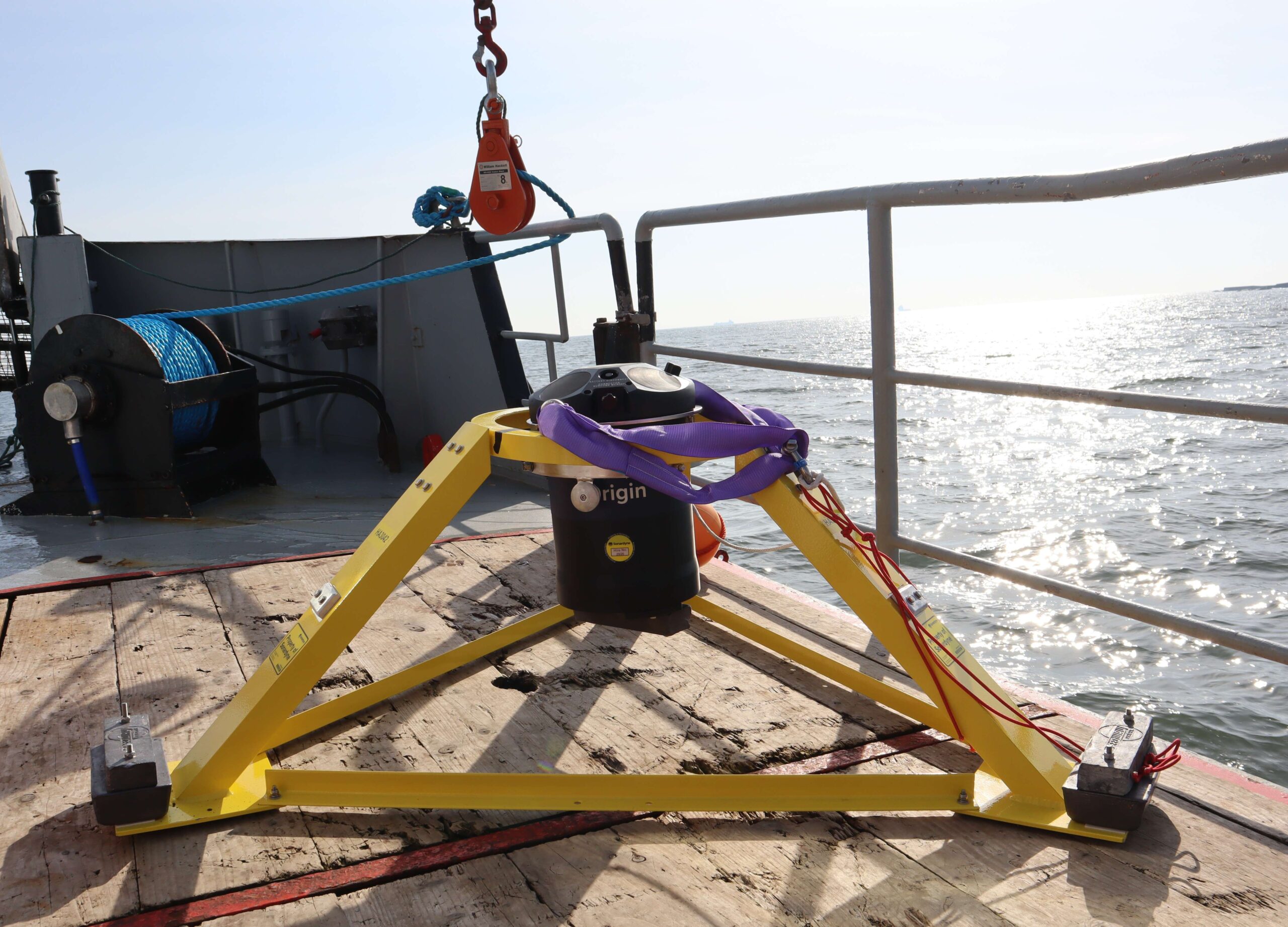

ADCP data can be supplemented by and Edge-fused with data from external sensors so you can really get the most out of a single device deployment and the data generated. Optional seabed stand with integrated Sonardyne acoustic release for recovery using Ranger family of USBL systems.
Remote control
The integrated acoustic modem enables actions with the ADCP already in the water, delivering in-field flexibility and data assurance. Deploy and forget; integrated MF frequency modem offers in-situ data recovery, remote re-configuration and survey QC.
Specifications
| Features | Type 8382 (-0457 single battery; -0427 dual battery) | |
|---|---|---|
| ADCP | Operating frequency | 625 kHz |
| Maximum profiling range | 60+ m (depending on water environment) | |
| Minimum cell size | 12 mm | |
| Minimum blanking distance | 0.6 m | |
| Velocity range (along beam) | Up to ±2 m/s or 3.75 m/s user selectable | |
| Velocity RMS | 0.5% of measured value | |
| Maximum number of cells | 2,500 | |
| Maximum ping rate | 4 Hz (5 beams) | |
| Beam width/ angle | ±1 degrees / 25 degrees | |
| Acoustic modem | Operating frequency | MF (20–34 kHz) |
| Typical operating range | 500 m | |
| Sensors | Temperature | -5° to 35°C |
| Heading accuracy/ resolution | ±1°/0.1° | |
| Pitch & roll accuracy/ resolution & range | ±1°/0.1° & ±90° (pitch), ±180° (roll) | |
| Pressure | ±0.05% full scale; inquire for options | |
| Communication and logging | Communications | RS232, Ethernet and acoustic modem |
| Internal logging | 1 TB internal memory | |
| Output | Output telegrams | PD0, A gram, and B gram; simultaneous output |
| Electrical | External power | 18-48 V power by external cable; PoE+, adapter includedPoE+; adapter included |
| Power | 15 mW (sleep), 600 mW (pinging), 3.5 W (fully active) | |
| Internal battery capacity | 55 Ah rechargeable (dual battery option available); charger included | |
| Internal battery recharge | 4 hours fast charge (8 hours for dual battery option) | |
| Full/ scheduled/ standby lifespan | 1 week/ 3 months/ 2 years | |
| Environmental | Depth rating | 300 m survivable/ 150 m operational |
| Operating/ storage temperature | -5 to 40°C/ -20 to 55°C | |
| Mechanical | Construction | Plastic |
| Connector type | Subconn: 8-way for power and comms; 6-way for fast-charge | |
| Dimensions (height x max diameter) | 308 x 290 mm (dual battery height 388 mm) | |
| Weight in air/ water | 19.2/ 7.2 kg (dual battery option 23.9/ 7.9 kg) | |
| Software | Origin Portal | Embedded Web UI for control & configuration |
| Origin Scheduler | Schedule planning & configuration tool | |
| Origin Viewer | File data inspection | |
| Origin Topside | Remote configuration & control over acoustic modem |
